Heavy-Duty Solar Tile Roof Hook | Adjustable Mounting Solution for Flat & Spanish Tiles
Durable SUS 304 stainless steel mounting hooks engineered for Spanish, clay, and curved tile roofs.
> Adjustable height
> Pre-assembled
> 10-year warranty
- Overview
- Recommended Products
- Base plate width 140 mm
- Steel thickness 6 mm
- Height per step 9 mm
- Mounting screw slot 9 × 18 mm
- Rail attachment slot 10 × 38 mm
- Included screw size 5/16" × 3"

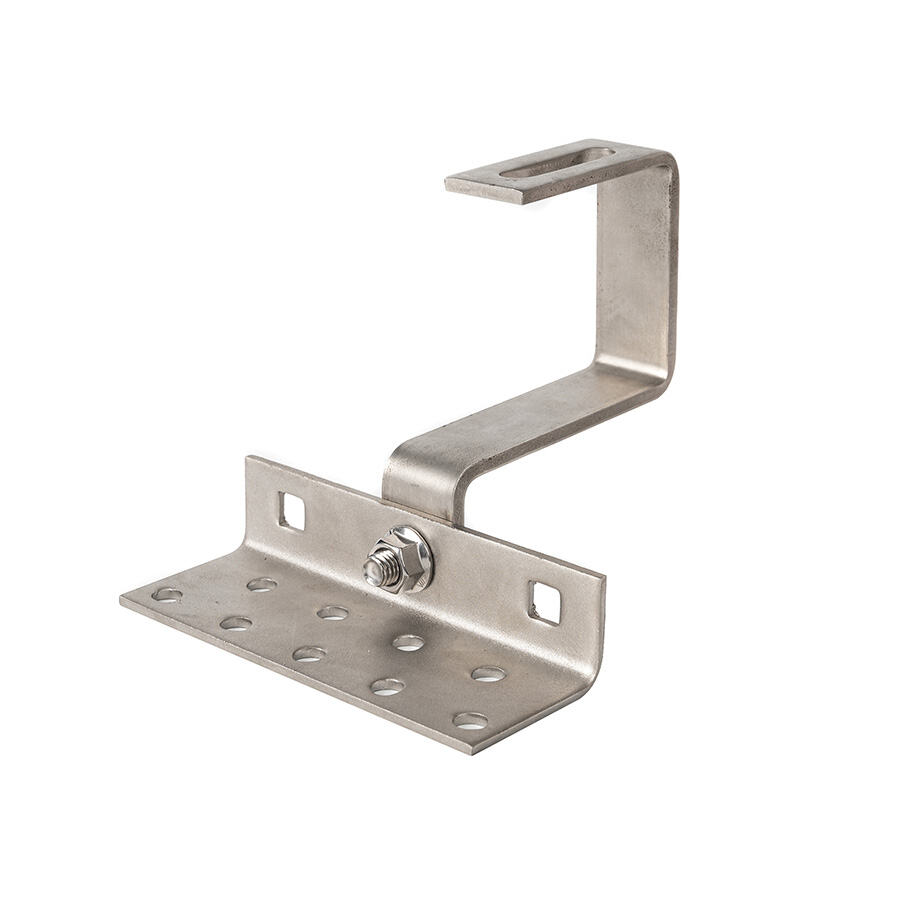

Heavy-Duty Solar Tile Roof Hook | Adjustable Mounting Solution for Flat & Spanish Tiles
Engineered for maximum durability and installation flexibility, our Solar Tile Roof Hook is the professional choice for securing solar arrays on tile roofs. Designed specifically for Bottom Mount Rails, this versatile hook accommodates both flat and curved Spanish tile profiles, ensuring a seamless fit for diverse residential and commercial projects.

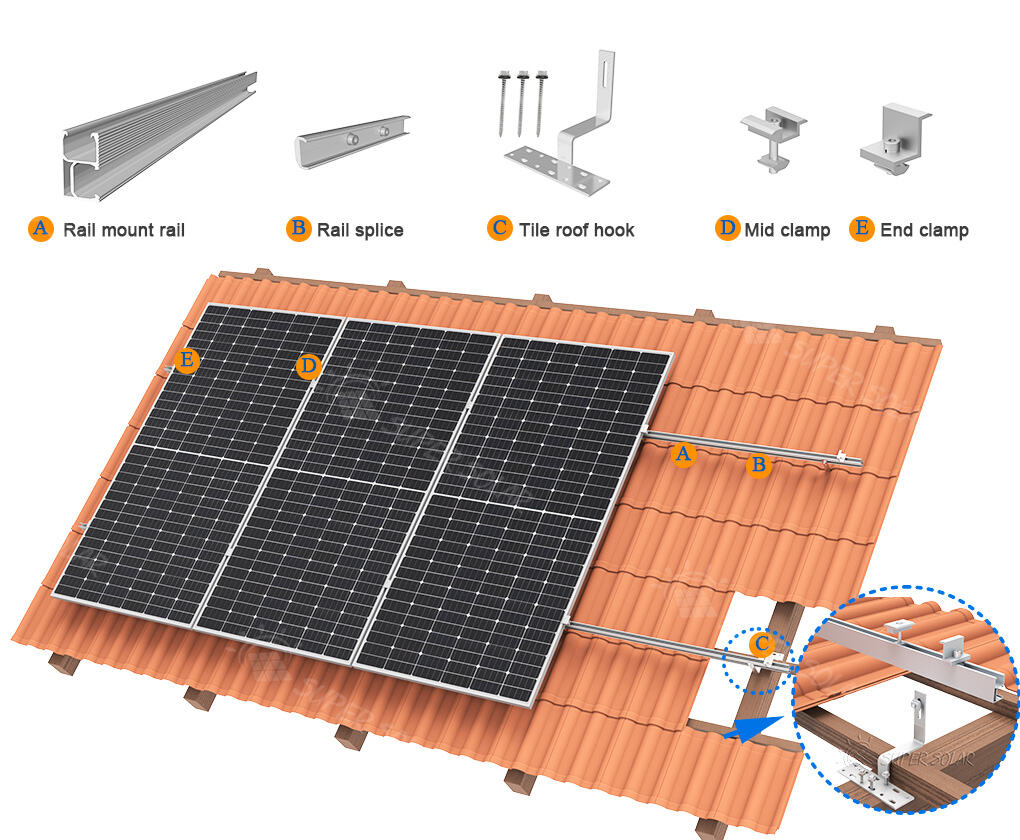

Complete tile roof mounting system overview
Five components work together for a weatherproof, structurally sound solar installation on tile roofs
Why contractors choose this hook
In competitive markets like Europe and Southeast Asia, reliability is non-negotiable.
Our hooks are designed to reduce installation time for EPC contractors while providing the structural reliability required for long-term value. Whether you are dealing with traditional Spanish S-tiles or modern flat tiles, this adjustable solution eliminates the need for multiple stock units, streamlining your inventory and project execution.
Engineered for fast, reliable installation on curved and flat tile roofs
6mm heavy-gauge steel
Full SUS 304 stainless steel body for outstanding corrosion resistance in coastal and humid climates.
9–27mm height adjustment
Three-step height range via 9mm × 18mm screw slots. Accommodates varying tile curvatures without custom parts.
Screws included
Ships with 2× 5/16" × 3" stainless steel wood screws. No separate hardware order required.
140mm wide base plate
Generous base spreads load across the rafter, reducing point stress and improving wind resistance.
10mm × 38mm rail slot
Standard slot accepts most AL6005-T5 aluminum mounting rails. Portrait and landscape both supported.
10-year product warranty
Full warranty covers material defects under normal installation conditions. Factory-backed support.
Full technical specifications
Model: Solar Spanish Tile Roof Hook, Bottom Mount (TRH-BM-SS6)
| Specification | Value |
|---|---|
| Material | SUS 304 Stainless Steel (full body) |
| Steel thickness | 6 mm |
| Base plate width | 140 mm |
| Height adjustment | 9 mm per step (3 steps = 9 / 18 / 27 mm) |
| Mounting screw slots | 9 mm × 18 mm |
| Rail attachment slot | 10 mm × 38 mm |
| Included fasteners | 2× 5/16" × 3" stainless steel wood screws |
| Mount type | Bottom mount (rail above tile surface) |
| Compatible roof types | Spanish tile, flat tile, curved tile, clay tile |
| Panel orientation | Portrait and landscape |
| Panel type | Framed and frameless |
| Surface treatment | Natural brushed stainless — no coating needed |
| Warranty | 10 years |
| MOQ (sample) | 5 pcs |
| MOQ (wholesale) | 50 pcs |
Key dimensions at a glance
Step-by-step installation guide
For a detailed guide on achieving a professional-grade finish, please refer to Installation
Remove tiles
Lift curved or flat tiles at each hook position to expose the wood rafter beneath.
Mark & drill
Mark rafter centerline. Pre-drill pilot holes. Apply waterproof sealant before driving the included 5/16"×3" SS screws.
Set hook height
Choose 9, 18, or 27mm height step based on tile profile. Tighten the adjustment bolt firmly.
Replace tiles
Slide tiles back around the hook arm. Minimal or no tile cutting needed in most Spanish tile profiles.
Attach rail
Insert AL6005-T5 mounting rail into the hook slot. Connect rail sections with rail splices (Part B). Level and torque.
Install panels
Place solar panels on rails. Secure with mid clamps (Part D) between panels, end clamps (Part E) at array edges.
Final inspection
Check all fastener torques, rail level, panel alignment. Confirm weatherproofing at each hook penetration point.

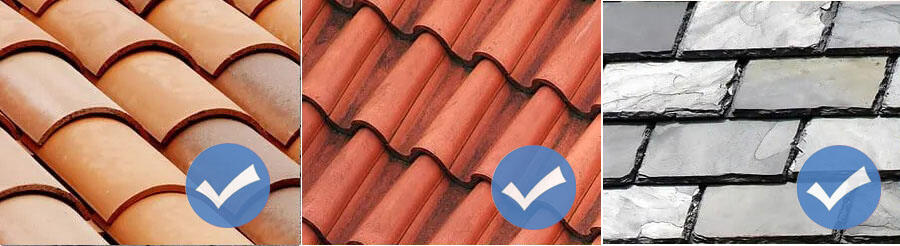

Compatible roof tile types
One hook system across the most common residential tile profiles
A Complete Range: One-Stop Solutions for All Tile Roofs
While this adjustable hook is ideal for standard flat and Spanish tiles, it is just one part of our extensive solar mounting ecosystem. We understand that every roof is unique, which is why we offer a comprehensive lineup of tile hooks engineered to match any roof profile globally.
From traditional Mediterranean clay tiles to modern concrete flat tiles, and specialized interlocking pantiles, we have the right fit for your project.
Our Expanded Tile Hook Catalog Includes:
Fixed & Adjustable Options: Tailored for varying rafter depths and clearance heights.
· Side-Mount & Bottom-Mount Designs: Providing ultimate flexibility for your preferred rail configuration.
· Custom Fabrications: Available upon request to meet specific regional building codes and extreme weather requirements (high wind/snow loads).
· No matter the tile shape or installation challenge, we provide the reliable, certified hardware required to keep your installation fast and your project secure.
Frequently asked questions
Common installer and buyer questions answered
A bottom mount hook anchors to the roof rafter below the tile and extends up through tile gaps, keeping the rail close to the roof plane with minimal tile cutting. A side mount attaches to the rafter side and projects outward. Bottom mount is preferred for Spanish and flat tile because it distributes load evenly and produces a lower-profile installation.
In most cases, no. The slim 6mm hook arm passes between or through natural gaps in Spanish and flat tiles. For tight profiles, a small notch may be needed — but the narrow arm minimizes this significantly compared to thicker brackets.
The 10×38mm slot is compatible with most standard AL6005-T5 aluminum mounting rails used in residential solar, including common 35mm and 40mm profile rails. Works with M8 T-bolts and standard clamps. Contact us with your specific rail model for confirmation.
SUS 304 provides excellent corrosion resistance for most environments including moderate coastal exposure. For very high-salinity locations within 500m of the ocean, we offer SUS 316 marine-grade on request. Contact our team for availability.
Sample orders start at 5 pieces. Wholesale MOQ is 50 pieces with volume pricing. We ship samples worldwide, typically within 3 business days. Use the quote form below to get started.
Standard practice is one hook per rafter, spaced 1.0–1.4m along the rail, aligned with roof rafters. A typical 4-panel landscape row needs 3–4 hooks per rail row. Contact our engineering support for a free layout review based on your wind zone and panel specs.
