Two-Piece Solar Tile Roof Hook Kit

Two-Piece Solar Tile Roof Hook Kit | SUS304 Stainless Steel PV Mounting Bracket | OEM Custom Packaging Available

Product Description

Our Two-Piece Solar Tile Roof Hook Kit is engineered for installers and distributors who need a reliable, easy-to-install, and high-strength PV mounting solution for tiled roofs.

Each set consists of two perfectly matched components (a base plate and an adjustable hook arm) that lock together to provide stable support under various tile types.
The components are manufactured from premium SUS304 stainless steel, ensuring outstanding corrosion resistance and long outdoor service life.

This two-piece structure allows installers to slide and adjust the hook position easily, making it suitable for uneven roofs or varying tile heights.

We also support full OEM customization, including logo engraving, size adjustments, and custom packaging for retail or wholesale requirements.

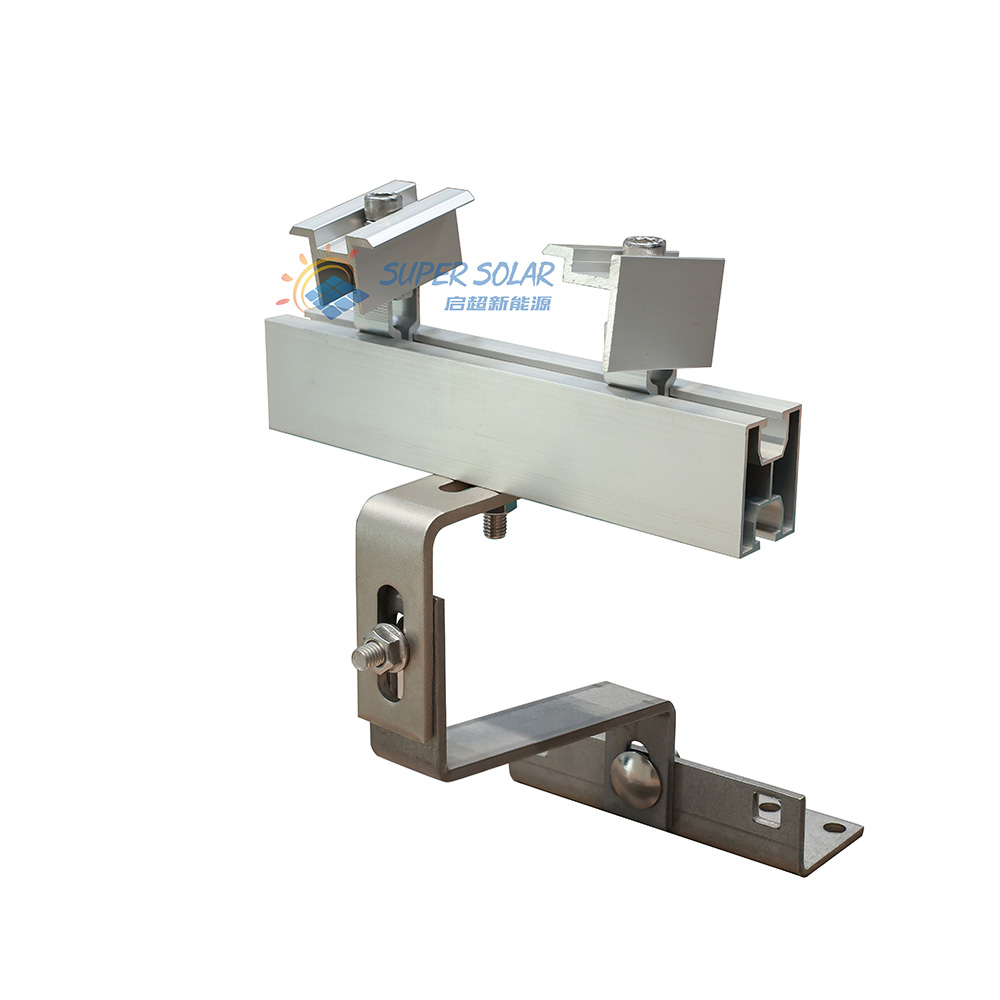

Roof Hook in Detail
Material：SUS304 Stainless Steel
Surface： Brushed / Polished
Tile Compatibility：Flat / Curved / Roman / Spanish
Rail Compatibility：All standard solar rails
Installation：Quick mount, screw fixation

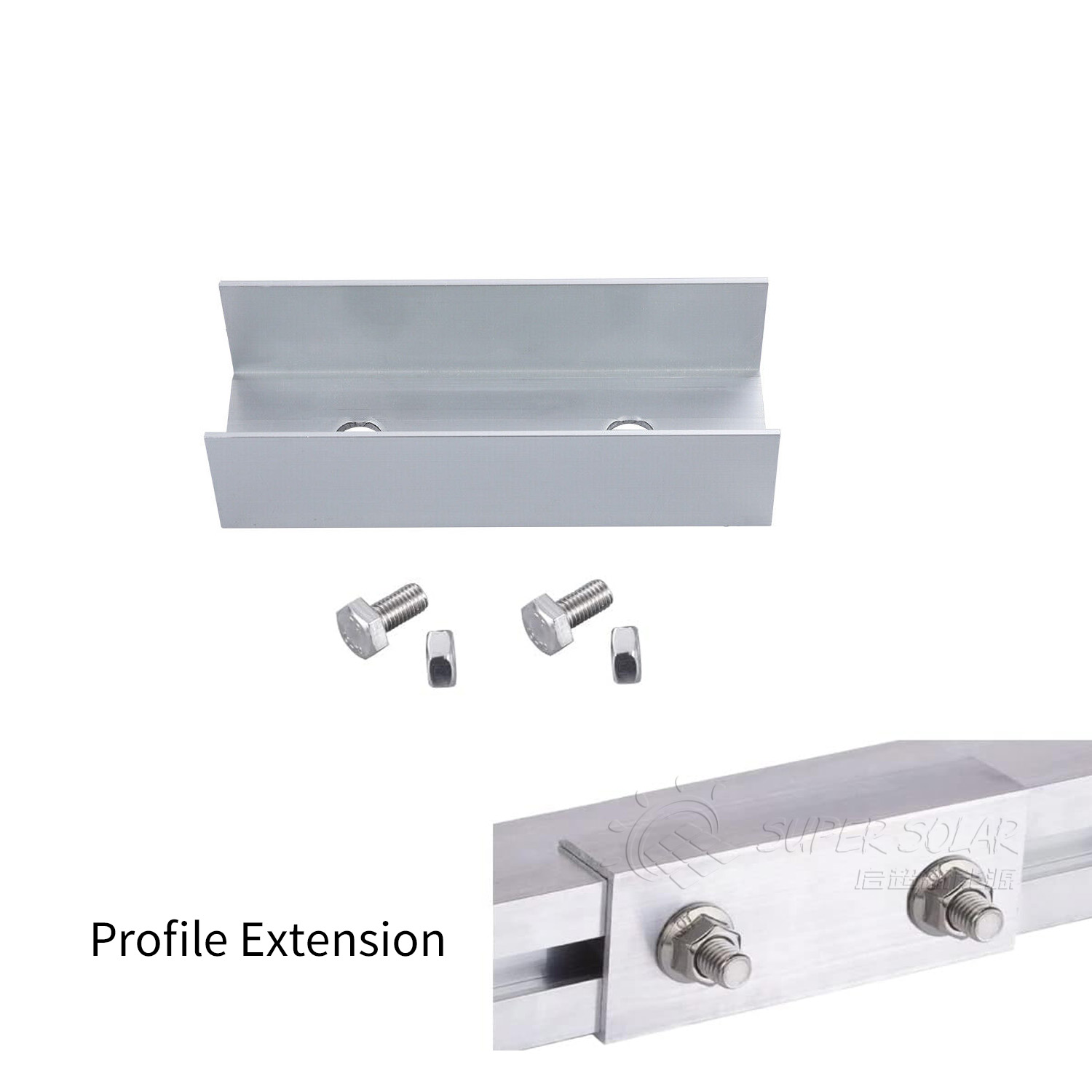

Profile Extension
With this connecting rail, you can easily extend your solar panel profiles. Simply insert the profiles, screw them in – and you're done!

Middle clamp
The middle clamp is the counterpart to the end clamp and allows you to attach two solar modules to an aluminum profile in a space-saving manner.

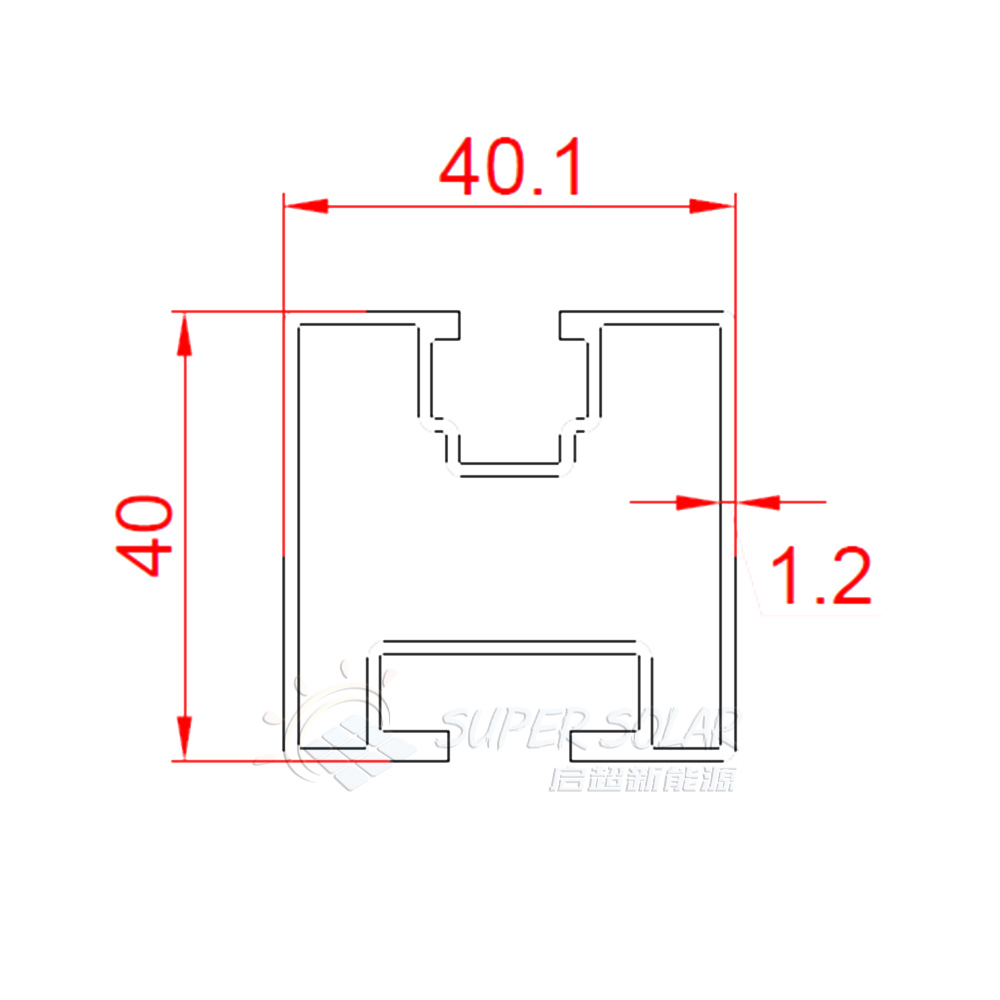

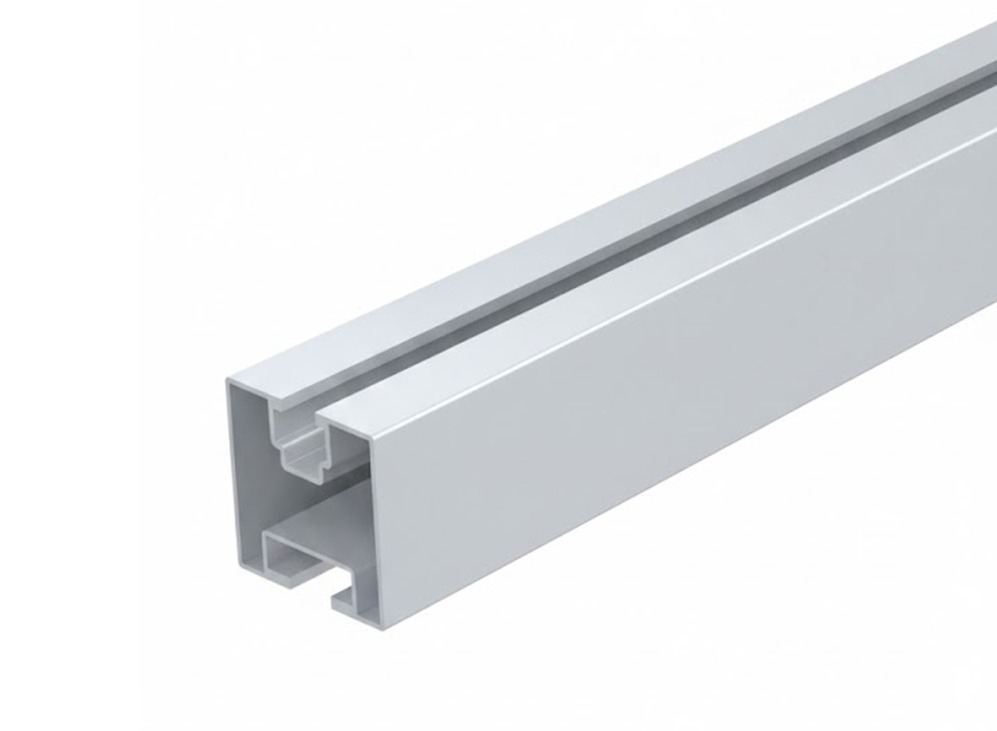

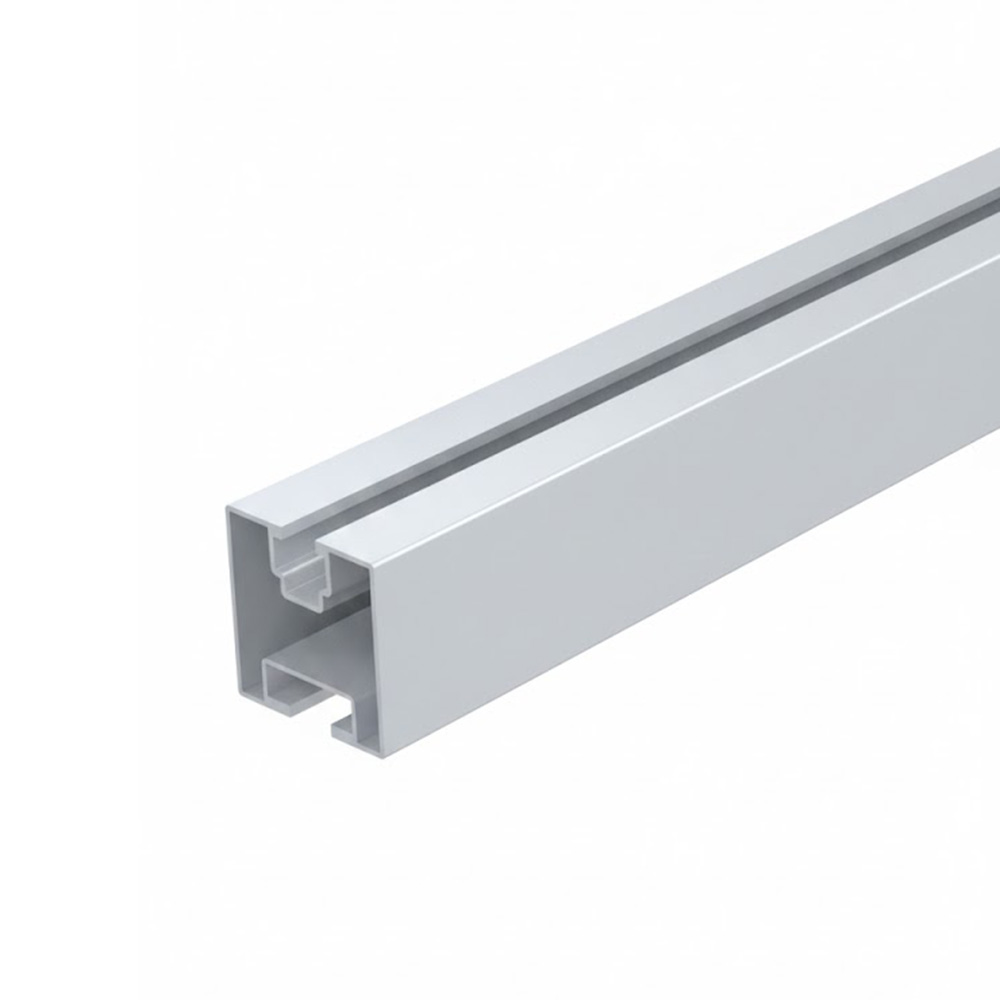

Aluminum profile
The aluminum profile, made from high-quality AL5005-T5, impresses with its weather resistance and offers space for solar panels with a width of up to 1150 mm.

Screw set
The roof hooks are easily attached under the tiles using the 18 stainless steel wood screws.
The solar module is then attached to the aluminum profile with the clamps.

End clamp
The end clamps, made of aluminum AL6005-T5, secure the solar module to the aluminum profile.
Simply slide the end clamps into the rail, tighten the screws, and you're done!

End cap
4 EPDM end caps prevent dirt and rain from entering the aluminum profiles.

More solar mounting solution for tile roof, metal roof...

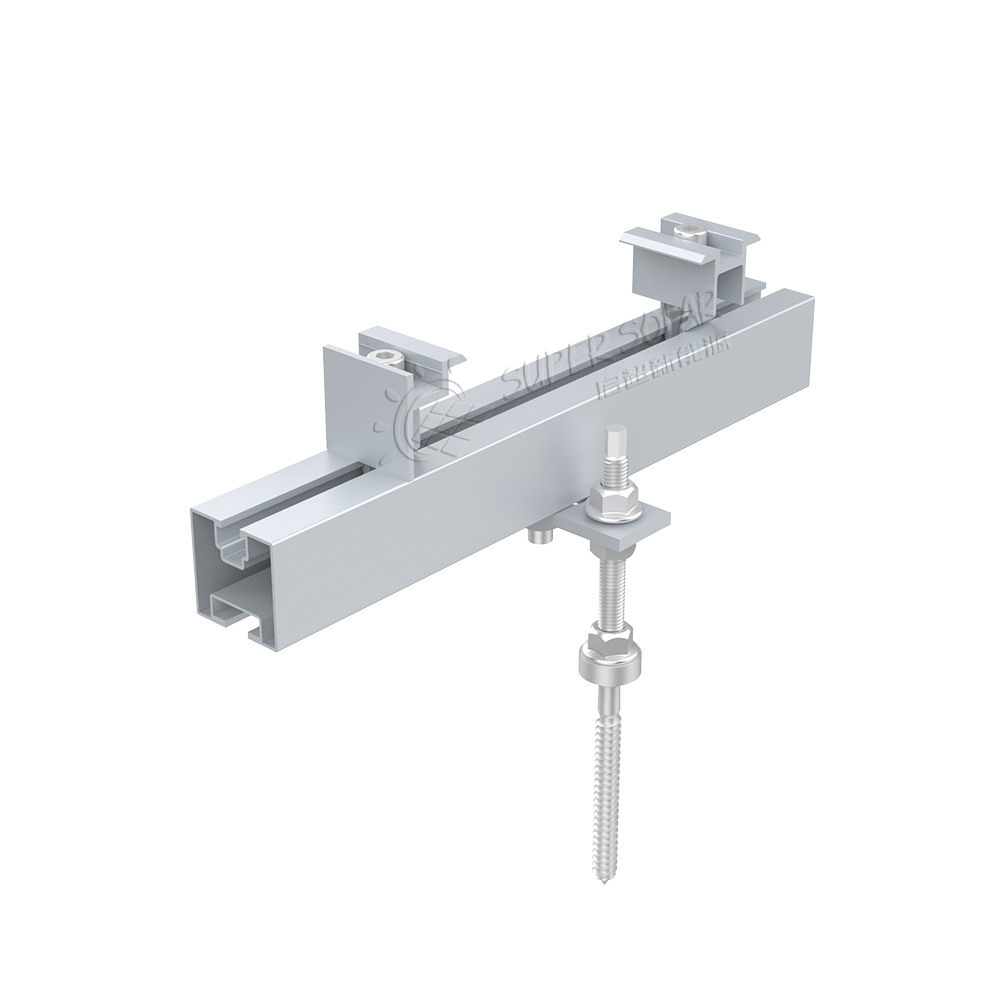

Rails + solar hooks, best for:  *  Tile roofs (ceramic, clay, concrete tiles)  *  Asphalt shingle roofs  *  Slate roofs	Rails + hanger bolts, best for:  *  Metal roofs (tin roof, corrugated metal sheet, trapezoidal roofing)  *  Wood beam or steel beam roofing structures

Features

🔹 01. Complete Two-Piece Kit
Each set includes two structural components (base + hook arm) designed for easy assembly and flexible installation.

🔹 02. Adjustable & Installer-Friendly
The two-piece structure allows installers to adjust height or position to match tile thickness and rafter spacing.

🔹 03. SUS304 Stainless Steel
Provides long-lasting corrosion resistance and supports high loads in harsh weather conditions.

🔹 04. Compatible with Multiple Tile Roofs
Suitable for flat tile, curved tile, Spanish tile, Roman tile, and concrete tile roofs.

🔹 05. Universal Rail Compatibility
Designed to work with most PV mounting rails and clamps.

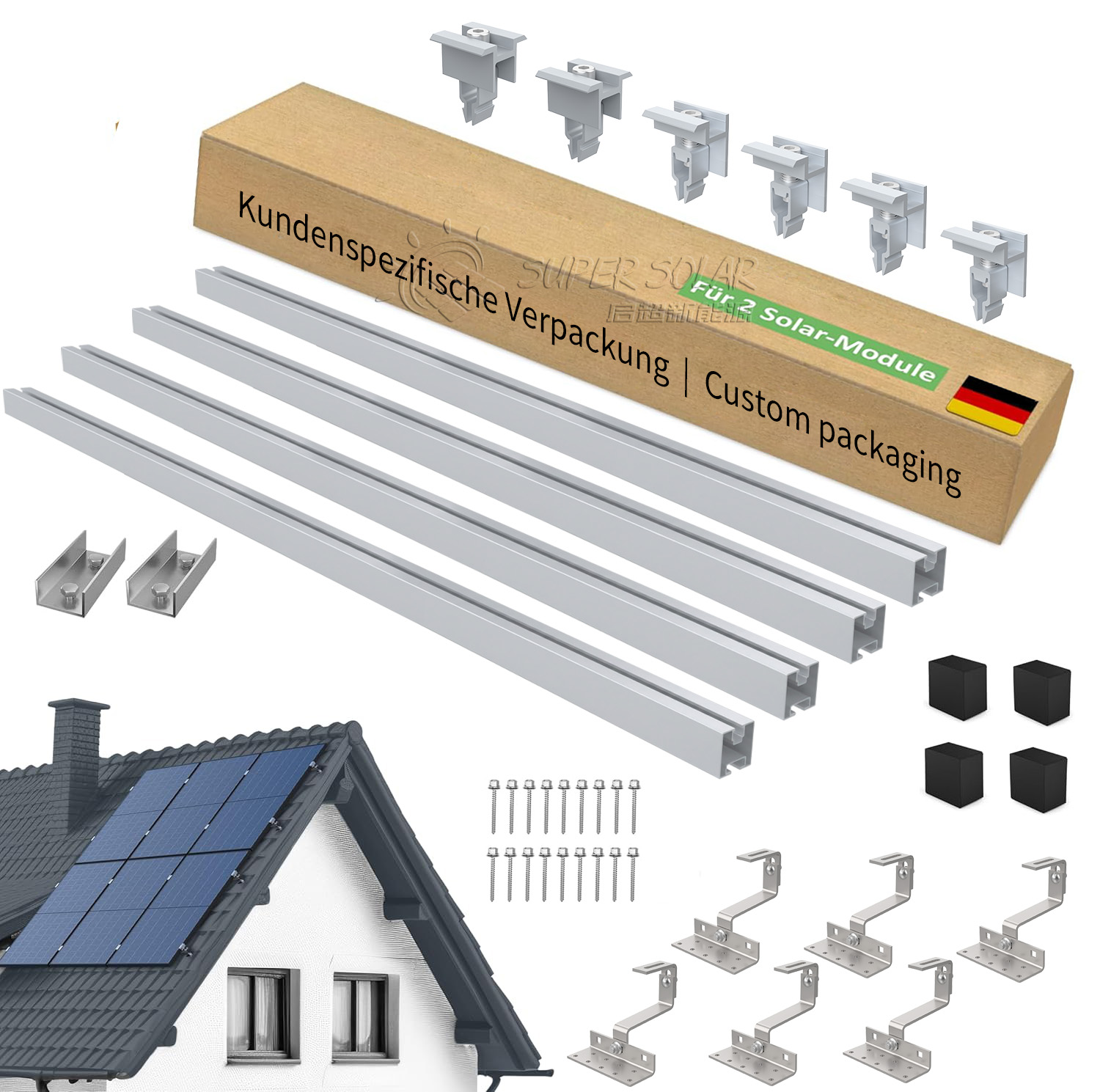

🔹 06. OEM Custom Packaging Supported
We offer:
Custom retail boxes
Distributor bulk packaging
Logo printing / engraving
Custom labels & barcodes
Reinforced export cartons

🔹 07. Ideal for Wholesalers & Installers
Stable quality, consistent size control, fast delivery, and strong packaging suitable for pallet shipping.

Custom Solar Mounting Solutions for Your Projects

Tailored to Your Project Needs

Solar mounting for  rooftop, ground,  carport , tracking system...

√ Free Project Design & Structural Calculation

√  Fast Production & Global Delivery

√  OEM / ODM Customization

√  Aluminum & Steel Structures Available

Send Inquiry for Free Design & Quick Quotation>>

FAQ

 1. What is an Adjustable Solar Hook?
An Adjustable Solar Hook is a mounting component used to fix solar panels onto tiled roofs.
Our hook includes a twopiece adjustable structure, allowing installers to finetune the height and position to match different tile thicknesses and roof conditions.

 2. What type of roofs does this Photovoltaic Mounting System support?
This Photovoltaic Mounting System is designed for tiled roofs such as:
 Flat tile
 Curved tile
 Roman tile
 Spanish tile
 Concrete tile

If you’re unsure about your tile type, we can evaluate it from photos or drawings.

 3. Is the adjustable range customizable?
Yes.
We can customize:
 Hook height (mm)
 Slot length
 Base plate size
 Stainless steel thickness

OEM customization is fully supported for installers and distributors.

 4. How strong is the twopiece solar hook kit?
The kit is made from SUS304 stainless steel, offering high tensile strength and corrosion resistance.
It has been tested for:

 Strong wind loads
 Heavy snow loads
 Longterm outdoor durability (UV, rain, humidity, salt fog)

 5. Does this mounting system work with all standard solar rails?
Yes.
Our hook fits all common PV mounting rails on the market, including:
 Tslot rails
 Crails
 Lfoot rail systems
 Universal solar mounting profiles

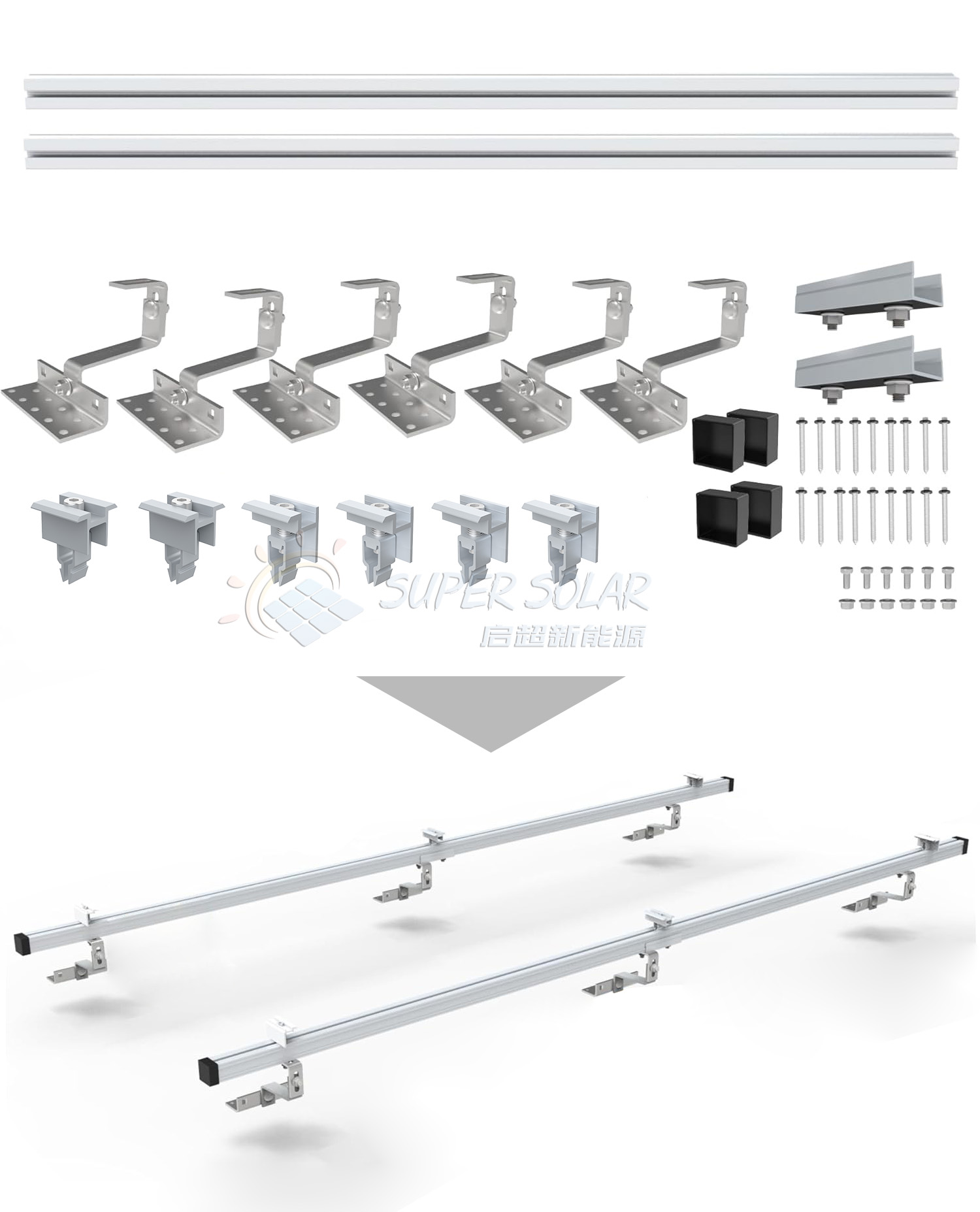

 6. What is included in the TwoPiece Hook Kit?
A complete kit includes:
 1× Base Plate
 1× Adjustable Hook Arm
 Optional screws, bolts, and washers
 Packaging: bulk or custom OEM box

We can supply fully preassembled kits if required.

 7. Do you offer custom packaging for wholesale orders?
Yes. We provide full custom packaging service, including:
 Retail color box
 Whitelabel packaging
 Bulk carton packaging
 Logo printing / laser engraving
 Custom labels & barcodes

Perfect for distributors and ecommerce solar hardware sellers.

 8. Can these adjustable solar hooks be used for commercial projects?
Absolutely.
Our Adjustable Solar Hooks are designed for:
 Residential projects
 Commercial tiled roof installations
 EPC construction
 Distribution stock supply

We also provide structural drawings and load calculations if needed.

9. Can you manufacture hooks in different sizes for different markets?
Yes.
Many markets have different tile sizes and installation habits.
We regularly customize:
 Hook arm height
 Base plate width
 Curved / flat bottom design
 Hole positions

OEM/ODM welcome for distributors.

 10. Do you provide samples for testing?
Yes.
We can supply sample kits for testing, evaluation, or preproject approval.
Samples can be shipped with neutral or custom packaging.

 11. What is your MOQ for adjustable solar hooks?
MOQ is flexible.
For distributors or installers, we accept:

 Small trial orders
 Mixed sizes
 Customized order quantities

Highvolume pricing is available upon request.

 12. What is the lead time for bulk orders?
Normal lead time: 7–15 days
Large orders: 15–25 days
EU orders can ship faster via our Italy branch warehouse.
